320x160mm 32x16Dots Pixel RGB Full Color LED Advertising Board P10 Outdoor LED Panel Digital Screen Module
320x160mm 32x16Dots Pixel RGB Full Color LED Advertising Board P10 Outdoor LED Panel Digital Screen Module
Precio habitual
$25.84 USD
Precio habitual
$0.00 USD
Precio de oferta
$25.84 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Product Description
|
Product Features
|
||
|
Items
|
Parameter
|
|
|
Pixel Picth
|
10mm
|
|
|
Configuration
|
1R1G1B
|
|
|
Module size
|
320*160mm
|
|
|
Resolution
|
10000dots/sqm
|
|
|
Ave. Consumption
|
<300 w/sqm
|
|
|
Max. Consumption
|
≤900 w/sqn
|
|
|
Brightness
|
More than 5800cd/sqm
|
|
|
Grey Scale
|
4096
|
|
|
View Distance
|
3-10 m
|
|
|
View Angle
|
Horizontal: 120°, Vertical: 90°
|
|
|
Power Supply
|
AC 110V/220V+-10%
|
|
|
Drive Mode
|
1/2 Scan
|
|
|
Refresh Rate
|
>1920 Hz/s
|
|
|
Control System
|
Sync/ Async
|
|
|
Tolerance between modules
|
≤1.5mm
|
|
|
Storage Temperature
|
- 35°C ~ + 85°C
|
|
|
Working Temperature
|
- 20°C ~ + 65°C
|
|
|
Signal Interface
|
DVI
|
|
|
MTBF
|
≥10,000 hours
|
|
|
Life span
|
≥100,000 hours
|
|
|
Operation Humidity
|
10% ~ 95%
|
|
|
Waterproof Grade
|
Front: IP65, Rear:54
|
|
|
Input source
|
DVI, S-video, RGB, VGA and etc
|
|
|
Operation System
|
Windows98, 2000, ME, VISTA, XP, Win7
|
|
|
Certifications
|
CE, FCC, ROHS
|
|

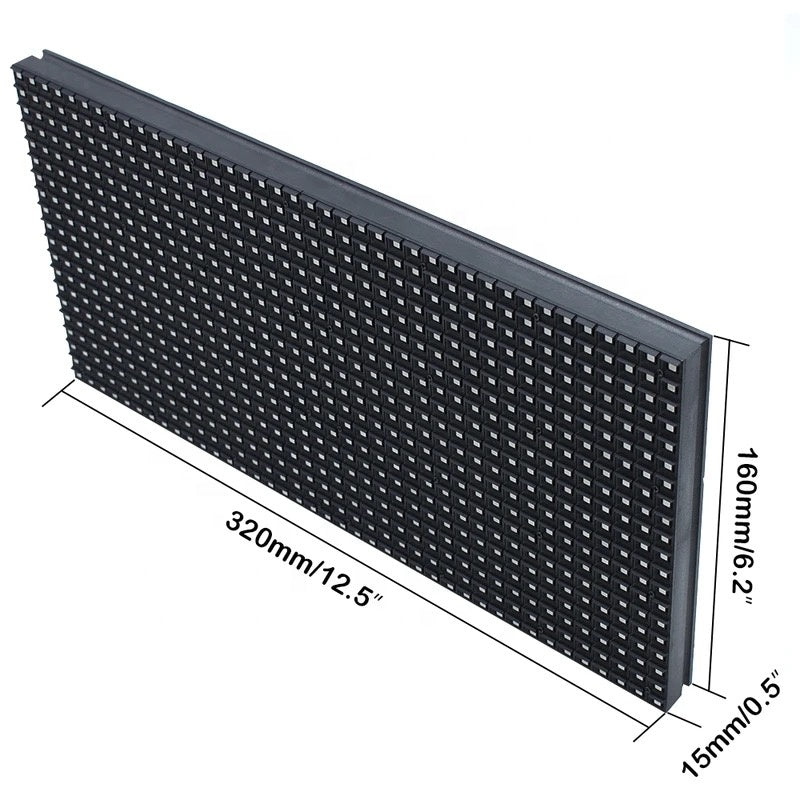

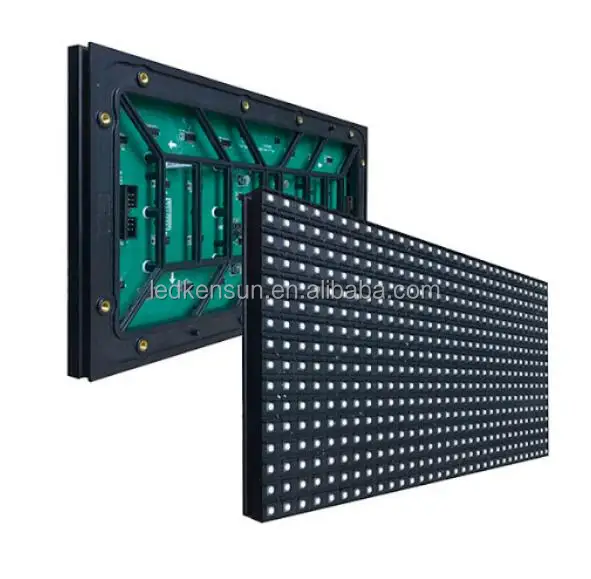

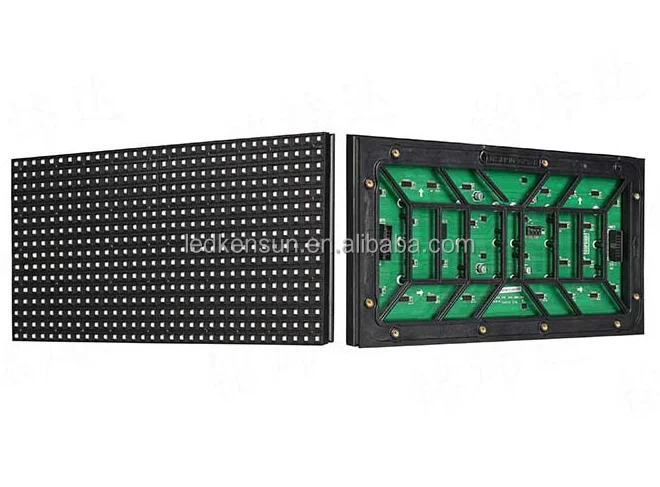

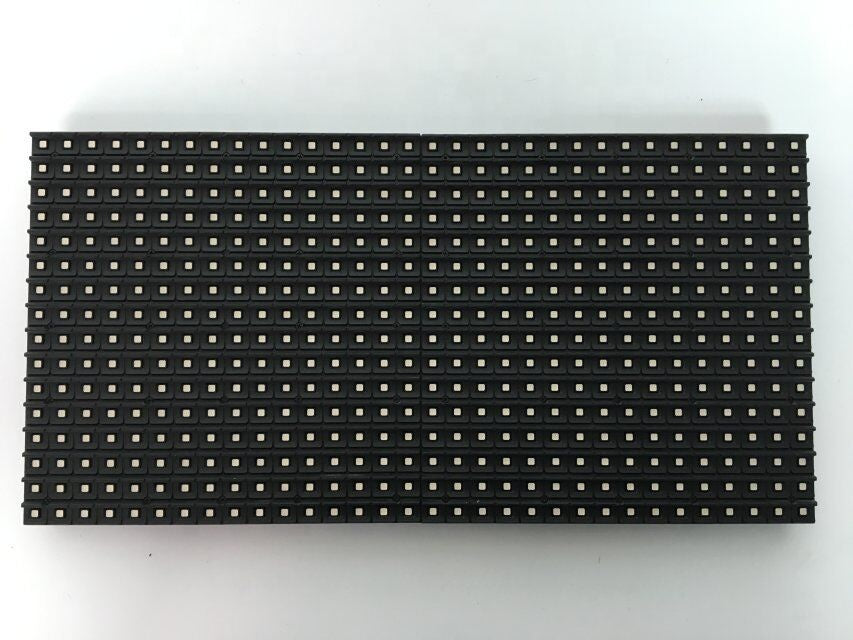

P10 Outdoor LED Modules 320*160mm

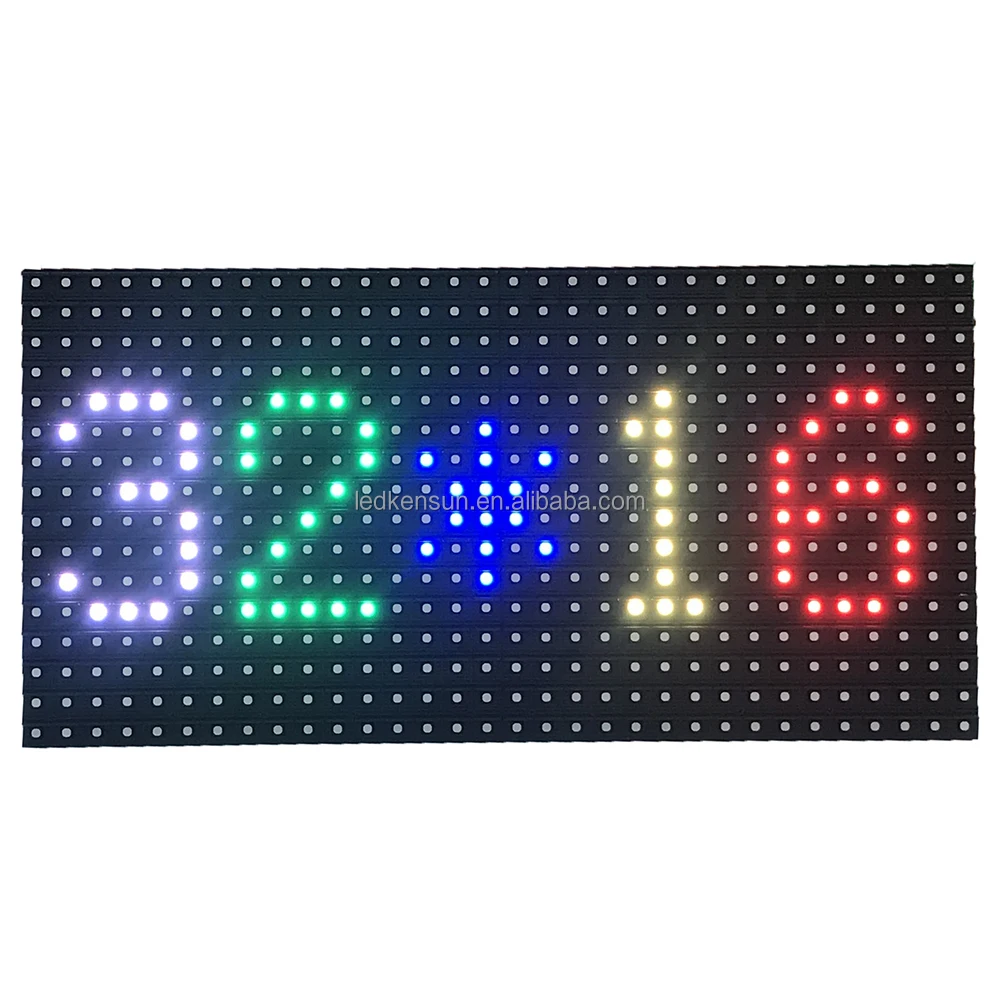

* Pixel Pitch 10mm, module size 320*160mm, 32*16 Pixels RGB Full Color LED Module for outdoor.
* Excellent SMD LEDs, good visual effect,high efficiency and energy saving.

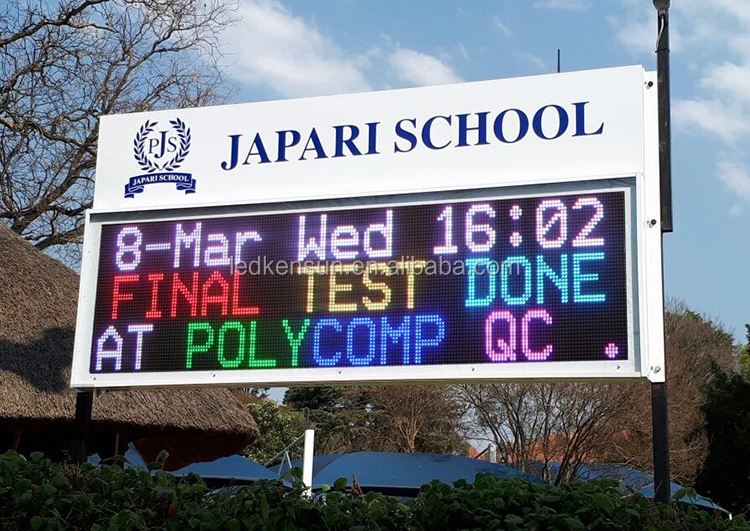

* Perfect for products advertising, shop decoration, popularizing knowledge, broadcast speech of welcome/celebration in formal occasion, Traffic guidance indication.
* Widely used in shops, restaurants, hotels, company, post office, shopping mall, airports, stock office, stage, grand show
event, exhibition, Traffic dispatch, etc.
* Different LED module size for DIY projects, any problem with our products or need other specifications, please feel free to contact us directly.
* Excellent SMD LEDs, good visual effect,high efficiency and energy saving.
* Perfect for products advertising, shop decoration, popularizing knowledge, broadcast speech of welcome/celebration in formal occasion, Traffic guidance indication.
* Widely used in shops, restaurants, hotels, company, post office, shopping mall, airports, stock office, stage, grand show
event, exhibition, Traffic dispatch, etc.
* Different LED module size for DIY projects, any problem with our products or need other specifications, please feel free to contact us directly.

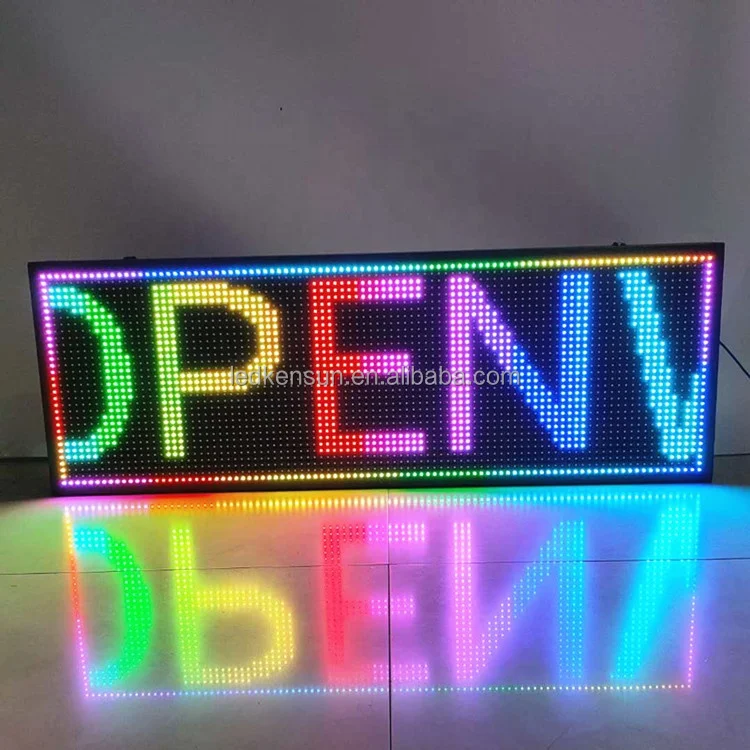

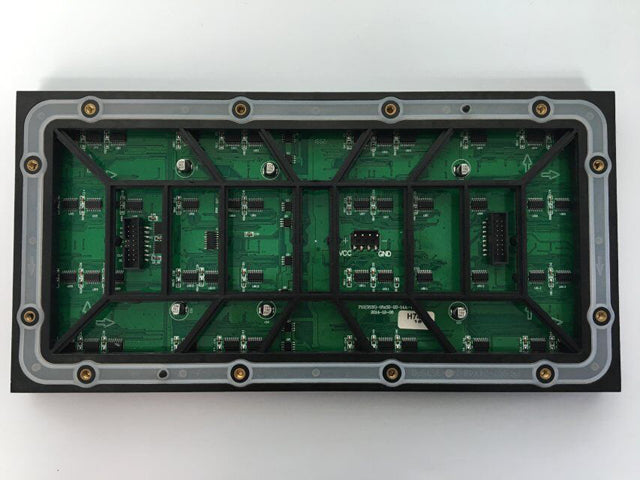

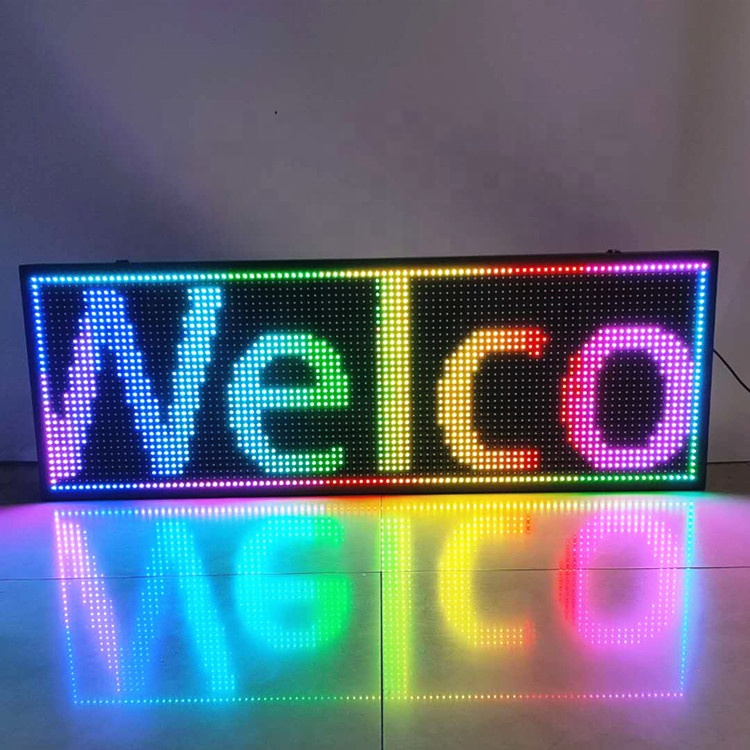

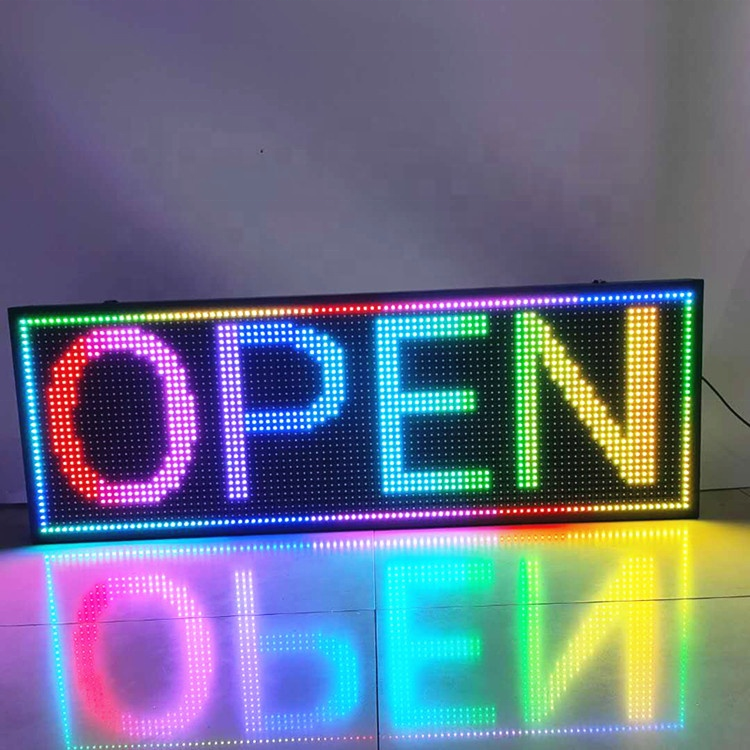

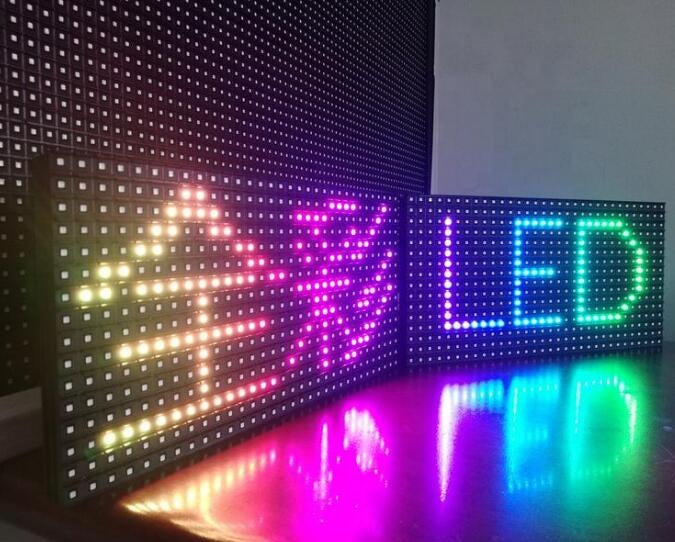

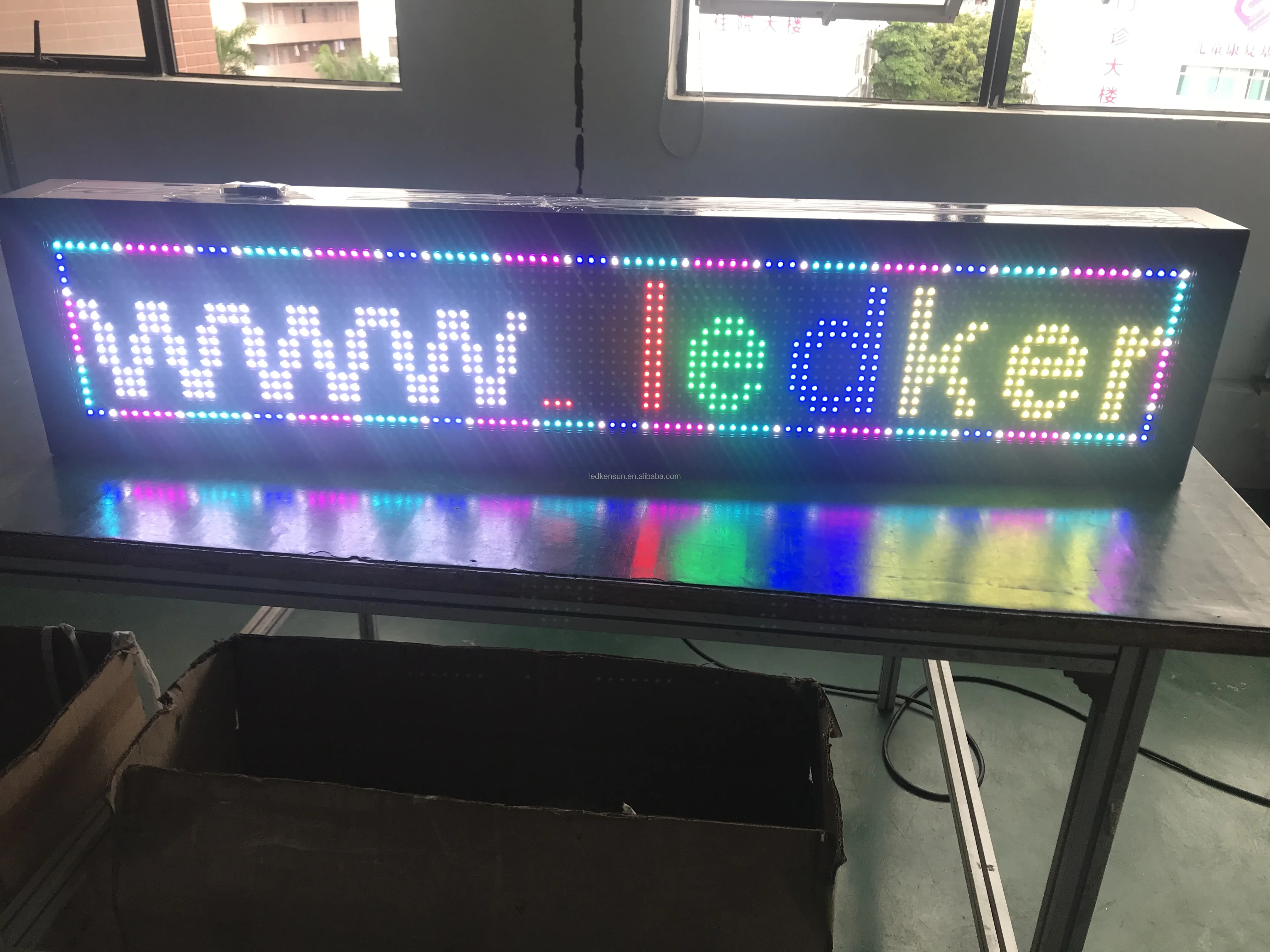

Detailed Images
1) The system design is advanced and reasonable, the display effect is stable, and the installation and maintenance are convenient. 2) All-weather work: vivid colors, high refresh rate, anti-static, dust-proof, good heat dissipation effect, high cost performance. 3) Display mode: move left and right, move up and down, left and right, open and close, flashing, instant display, etc. 4). Use the program editing and playback software to edit, add, delete and modify text, graphics, images and other information through the mouse. The content of the arrangement is stored in the control card, and the information playback is automatically displayed in a loop according to the program table. 5) Strong luminous brightness: within the visible distance, when the sun shines directly on the surface of the screen, the display content is still clearly visible. 6) Good viewing angle: Both horizontal and vertical viewing angles are large, which is suitable for environments with wide horizontal distribution and large height drop.
